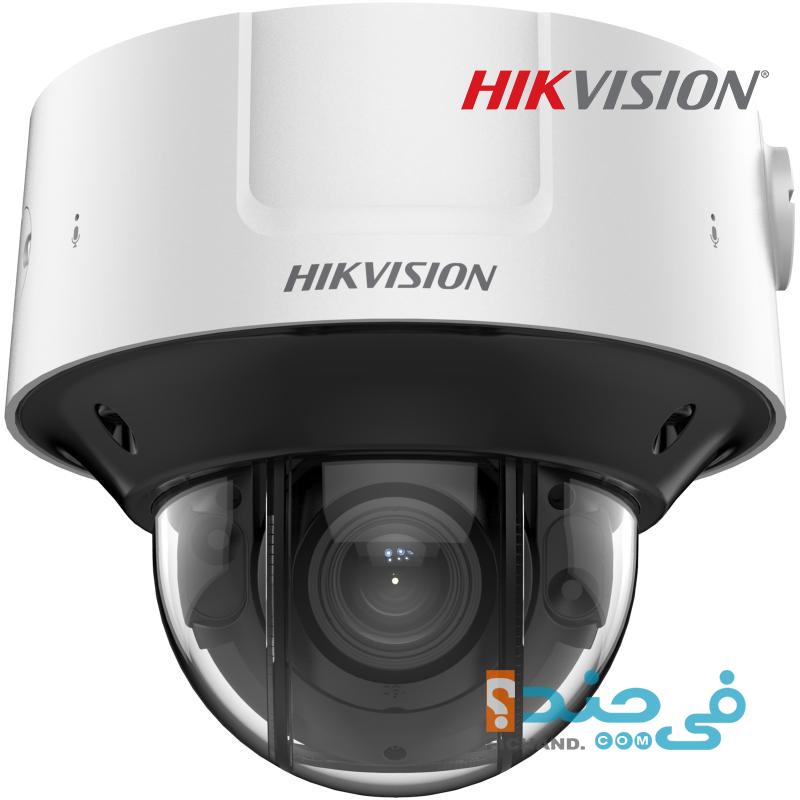

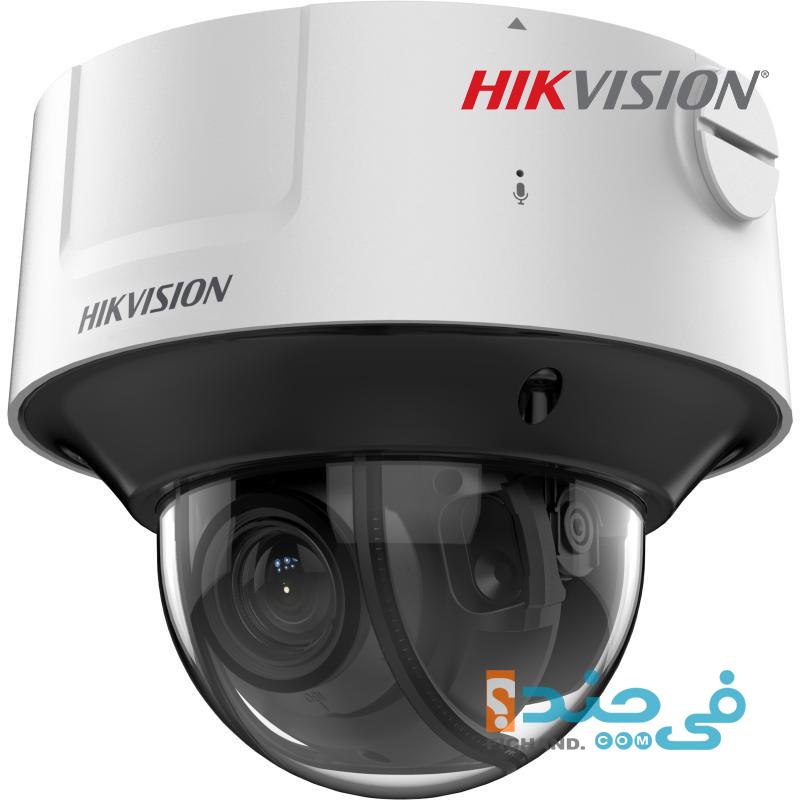

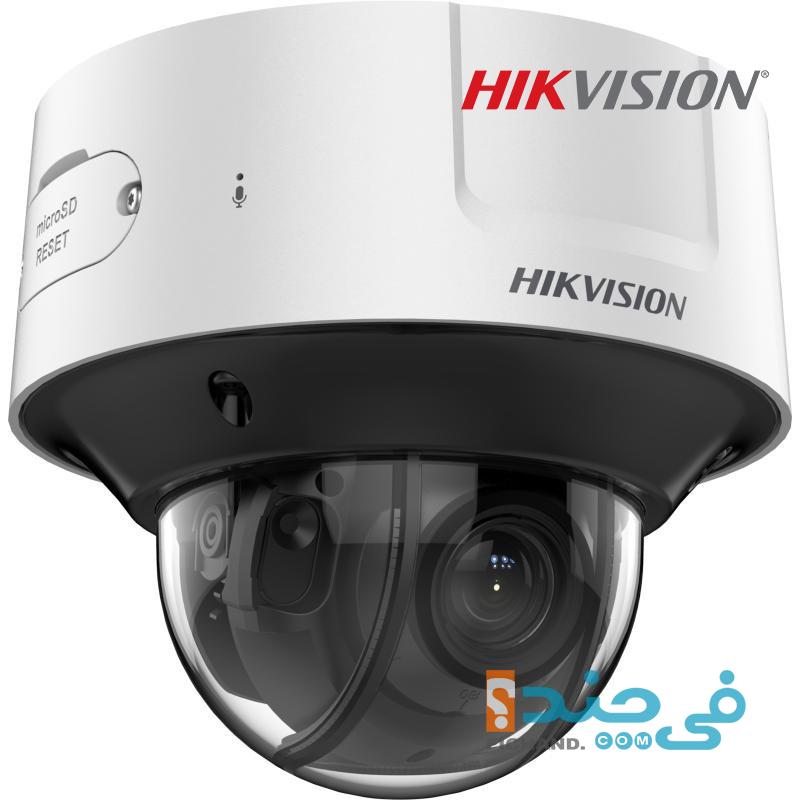

12MP DeepinView Outdoor Moto Varifocal Dome Camera
| دوربین | |
| حسگر تصویر | 1/1.7″ Progressive Scan CMOS |
| رزولیشن حداکثر | 4000 × 3000 |
| روشنایی دید در شب حداقل | Color: 0.009 لوکس نوری @ (F1.2, AGC ON); B/W: 0.0009 لوکس نوری @ (F1.2, AGC ON) |
| Shutter Time | 1 s تا 1/100,000 s |
| روز & Night | مادون قرمز cut filter Blue glass module تا reduce ghost phenomenon. |
| Angle Adjustment | چرخش چپ و راست (Pan): 0° تا 355°, چرخش بالا و پایین (Tilt): 0° تا 75°, rotate: 0° تا 355° |
| لنز | |
| نوع Iris | P-iris |
| Focus | اتوماتیک, semi-اتوماتیک, حالت دستی |
| فاصله کانونی & FOV | 2.8 تا 12 میلی متر, horizontal FOV 96° تا 46.2°, vertical FOV 69.2° تا 27.2°, diagonal FOV 131° تا 45.2° 8 تا 32 میلی متر, horizontal FOV 37.8° تا 13.6°, vertical FOV 27.8° تا 10.3°, diagonal FOV 48.6° تا 17.4° |
| دیافراگم | 2.8 تا 12mm: F1.2 تا F2.5 8 تا 32 mm: F1.7 تا F1.73 |
| Mount لنز | Integrated |
| روشنایی | |
| Supplement Light نوع | مادون قرمز |
| Supplement Light Range | 2.8 تا 12 مترمتر: 30 متر 8 تا 32 مترمتر: 50 متر |
| Wavelength مادون قرمز | 850 nm |
| هوشمند Supplement Light | دارد |
| تصویر | |
| Main Stream | 50 Hz: 25 fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 50 Hz: 20 fps (4000 × 3000) 60 Hz: 20 fps (4000 × 3000) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fourth Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fifth Stream | 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Custom Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| فشرده سازی تصویر | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG |
| تصویر Bit Rate | 32 Kbps تا 16 Mbps |
| نوع H.264 | Baseline Profile/Main Profile/High Profile |
| نوع H.265 | Main Profile |
| Bit Rate کنترل | CBR/VBR |
| Scalable تصویر Coding (SVC) | H.265 و H.264 encoding |
| Region of Interest (RoI) | 4 ثابت regions for each stream |
| Target Cropping | دارد |
| صدا | |
| محیط Noise Filtering | دارد |
| صدا Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Compression صدا | G.711/G.722.1/G.726/MP2L2/PCM/MP3 |
| صدا Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 تا 192 Kbps (MP2L2)/32 Kbps (PCM)/8 تا 320 Kbps (MP3) |
| نوع صدا | Mono sound |
| شبکه | |
| Simultaneous Live نمایش | Up تا 20 کانال |
| API | Open شبکه تصویر Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| Smooth Streaming | دارد |
| کاربر/Host | Up تا 32 کاربران. 3 سطح کاربریs: administraتاr, operaتاr و کاربر |
| Security | کلمه عبور مقاومت, complicated کلمه عبور, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP آدرس filter, basic و digest authentication for HTTP/HTTPS, WSSE و digest authentication for ONVIF, RTP/RTSP OVER HTTPS, کنترل Timeout Settings, Security Audit Log, TLS 1.2 |
| ذخیره سازی شبکه | microSD/SDHC/SDXC card (256 GB) local ذخیره سازی, و NAS (NFS, SMB/CIFS), اتوماتیک شبکه replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption و health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| مرورگر Web | Plug-in required live view: IE8+ Plug-in free live view: کروم 57.0+, فایرفاکس 52.0+, سافاری 11+ Local service: کروم 41.0+, فایرفاکس 30.0+ |
| تصویر | |
| Switch روز و شب | روز, Night, اتوماتیک, Schedule, Triggered by Alarm In |
| Overlay تصویر | LOGO تصویر can be overlaid on تصویر with 128 × 128 24 bit bmp format |
| Enhancement تصویر | BLC, HLC, 3D DNR, ضد مه, EIS, Distortion Correction |
| تصویر Parameters Switch | دارد |
| Settings تصویر | Rotate mode, saturation, brightness, contrast, sharpness, gain, بالانس نور سفید adjustable by client software یا web مرورگر |
| SNR | ≥ 52 دسی بل |
| Interface | |
| Alarm | |
| RS-485 | With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| خروجی تصویر | 1 Vp-p Composite خروجی(75 Ω/CVBS) (For debugging only) |
| ذخیره سازی On-board | میکروفون داخلیro SD/SDHC/SDXC slot, up تا 256 GB |
| Reset Key | دارد |
| Ethernet Interface | 1 RJ45 10 متر/100 متر/1000 متر self-adaptive Ethernet پورت |
| خروجی تغذیه | 12 ولت DC, حداکثر. 100 mA (supported by all منبع تغذیه types) |
| Event | |
| Basic Event | تشخیص حرکت, اختلال ویدیویی alarm, vibration detection, exception (شبکه disconnected, IP آدرس conflict, illegal ورود, HDD full, HDD error) |
| ارتباط | Upload تا FTP/NAS/memory card, notify surveillance center, send آدرس ایمیل, trigger خروجی آلارم, trigger recording, trigger capture; Trigger recording: memory card, شبکه sتاrage, pre-record و post-record; Trigger captured تصاویر uploading: FTP, SFTP, HTTP, NAS, آدرس ایمیل; Trigger notification: HTTP, ISAPI, خروجی آلارم, آدرس ایمیل. |
| Event هوشمند | |
| Deep Learning Function | |
| Face Capture | Detects up تا 30 faces simultaneously; Supports swing left و right از -60° تا 60°, tilt up و down از -30° تا 30°; Up تا 3 face libraries with up تا 30000 faces each are configurable; Recognizes face identity via face modeling, grading و comparing تا those in face library; Supports face library encryption. |
| Multi-target-type Detection | Supports simultaneous detection of تشخیص بدن انسان و face; Gets 8 face features و 13 تشخیص بدن انسان features. |
| Hard Hat Detection | Detects up تا 30 انسان targets simultaneously; Supports up تا 4 shield regions. |
| شمارش افراد | Supports وارد کردن/exiting counting (track 30 targets simultaneously); Supports facial recognition; Supports 24-hour dynamic deduplication و face library deduplication (up تا 3 face libraries with up تا 30000 faces); Supports reporting alarms when detecting the face is the same as that in the face library. |
| مدیریت Queue | Detects queuing-up people number, و waiting time of each person; Generates reports تا compare the efficiency of different queuing-ups و display the changing وضعیت of یک queue; Supports raw data export for further analysis. |
| حفاظت پیرامونی | Line crossing, ورود به محدوده, region entrance, region exiting; Support alarm triggering by specified target types (انسان و vehicle); Filtering out mistaken alarm caused by target types such as leaf, light, animal, و flag, etc. |
| Metadata | Metadata of ورود به محدوده detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal, face capture و queue مدیریت are supported. |
| General | |
| تغذیه | |
| Language | 33 languages انگلیسی, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, ترکی, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Heater | دارد |
| General Function | Anti- flicker, 5 streams و up تا 5 cusتاm streams, EPTZ, heartbeat, mirror, privacy masks, flash log, کلمه عبور reset via e-mail, پیکسل counter |
| Conditions ذخیره سازی | -30 درجه سانتی گراد تا 60 درجه سانتی گراد (-22 درجه فارنهایت تا 140 درجه فارنهایت). Humidity 95% یا less (non-condensing) |
| Startup و Operating Conditions | -40 درجه سانتی گراد تا 60 درجه سانتی گراد (-40 درجه فارنهایت تا 140 درجه فارنهایت). Humidity 95% یا less (non-condensing) |
| Material | Aluminum alloy body |
| Dimension | Ø162 × 141.8 میلی متر (Ø6.4″ × 5.6″) |
| Package Dimension | 251 × 215 × 189 میلی متر (9.9" × 8.5" × 7.4") |
| Weight | Without -Y: 1480 g (3.3 lb.) With -Y: 1550 g (3.4 lb.) |
| With Package Weight | Without -Y: 2407 g (5.3 lb.) With -Y: 2206 g (4.9 lb.) |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014) RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: Issue 6, 2016) KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1) CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013) CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013) LOA (IEC/EN 60950-1) BIS (IS 13252(Part 1): 2010+A1: 2013+A2: 2015) |
| محیط | |
| مقاومت | ضد آب IP67 (IEC 60529-2013) IK10 (IEC 62262: 2002) |
| Automotive و Railway | With -R: EN50121-4 |
| مقاومت Anti-Corrosion | With -Y: NEMA 4X (NEMA 250-2018) |
| Other | With -Y: PVC FREE |
