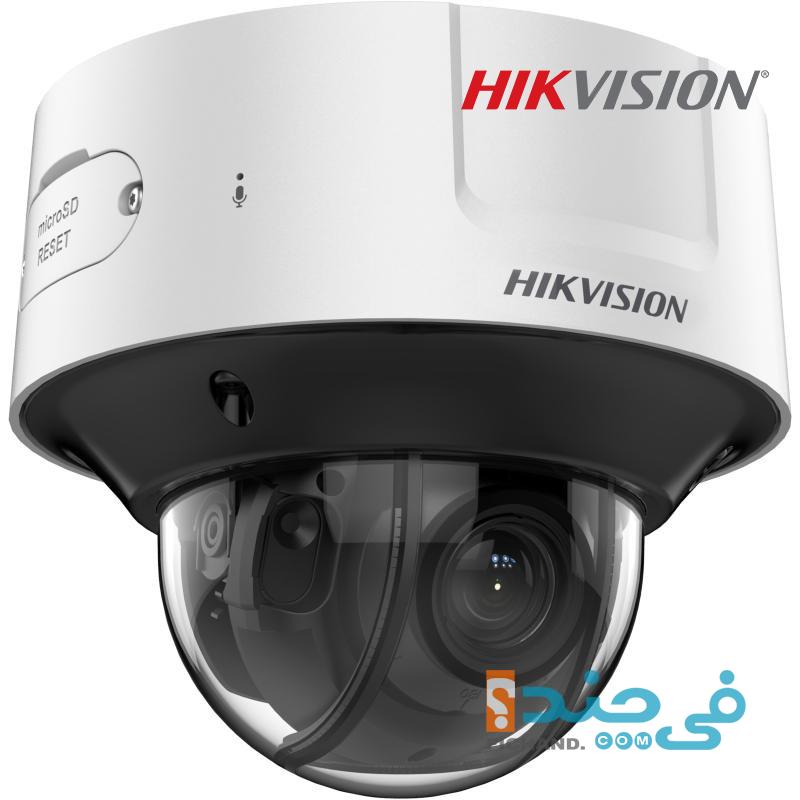

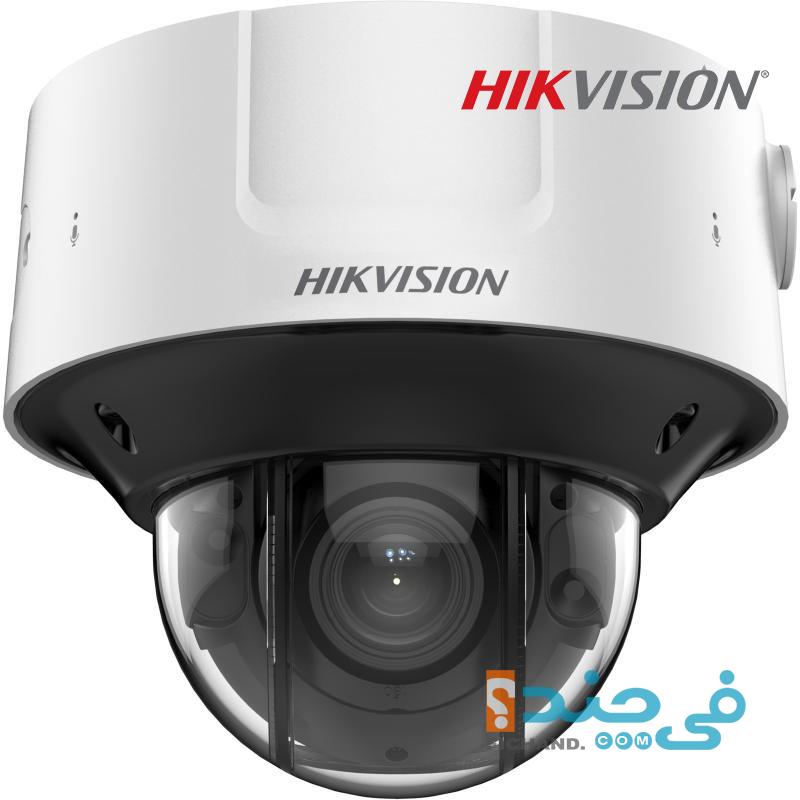

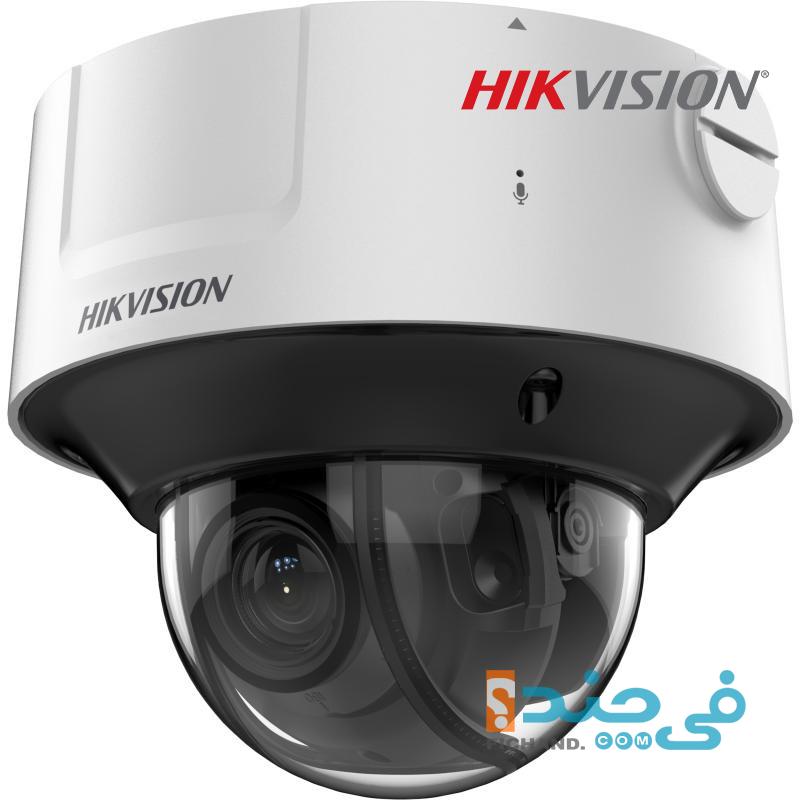

4MP DeepinView Outdoor Moto Varifocal Dome Camera
| دوربین | |
| حسگر تصویر | 1/1.8" Progressive Scan CMOS |
| رزولیشن حداکثر | 2560 × 1440 |
| روشنایی دید در شب حداقل | Color: 0.0005 لوکس نوری @ (F1.2, AGC ON); B/W: 0.0001 لوکس نوری @ (F1.2, AGC ON), 0 لوکس نوری with مادون قرمز |
| Shutter Time | 1 s تا 1/100,000 s |
| روز & Night | مادون قرمز cut filter Blue glass module تا reduce ghost phenomenon |
| Angle Adjustment | چرخش چپ و راست (Pan): 0° تا 355°, چرخش بالا و پایین (Tilt): 0° تا 75°, rotate: 0° تا 355° |
| لنز | |
| دیافراگم | 2.8 تا 12 mm: F1.2 تا F2.5 8 تا 32 mm: F1.7 تا F1.73 |
| نوع Iris | P-iris |
| فاصله کانونی & FOV | 2.8 تا 12 میلی متر, horizontal FOV: 114.5° تا 41.8°, vertical FOV: 59.3° تا 23.6°, diagonal FOV: 141.1° تا 48° 8 تا 32 میلی متر, horizontal FOV: 42.5° تا 15.1°, vertical FOV: 23.3° تا 8.64°, diagonal FOV: 49.6° تا 17.3° |
| Focus | اتوماتیک, semi-اتوماتیک, حالت دستی |
| DORI | Wide: 2.8 تا 12 مترمتر: D: 60 متر, O: 23.8 متر, R: 12 متر, I: 6 متر 8 تا 32 مترمتر: 150.3 متر, O: 59.7 متر, R: 30.1 متر, I: 15 متر Tele: 2.8 تا 12 مترمتر: D: 149 متر, O: 59.1 متر, R: 29.8 متر, I: 14.9 متر 8 تا 32 مترمتر: D: 400 متر, O: 158.7 متر, R: 80 متر, I: 40 متر |
| روشنایی | |
| Supplement Light Range | 2.8 تا 12 مترمتر: 30 متر 8 تا 32 مترمتر: 50 متر |
| Supplement Light نوع | مادون قرمز |
| هوشمند Supplement Light | دارد |
| Wavelength مادون قرمز | 850 nm |
| AI Open Platform | |
| Model Specification | Up تا 4 models, Model type: detection model, classification model, mixed model (detection model و classification model) |
| تصویر | |
| Main Stream | 50 Hz: 50 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 60 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fourth Stream | 50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Fifth Stream | 50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| فشرده سازی تصویر | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG |
| نوع H.265 | Main Profile |
| تصویر Bit Rate | 32 Kbps تا 16 Mbps |
| نوع H.264 | Baseline Profile/Main Profile/High Profile |
| Bit Rate کنترل | CBR/VBR |
| Scalable تصویر Coding (SVC) | H.264 و H.265 encoding |
| Region of Interest (RoI) | 4 ثابت region(s) for each stream |
| Target Cropping | دارد |
| صدا | |
| نوع صدا | Mono sound |
| Compression صدا | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| صدا Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 تا 192 Kbps (MP2L2)/8 تا 320 Kbps (MP3)/16 تا 64 Kbps (AAC-LC) |
| صدا Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz |
| محیط Noise Filtering | دارد |
| شبکه | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| Simultaneous Live نمایش | Up تا 20 کانال |
| API | Open شبکه تصویر Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP |
| کاربر/Host | Up تا 32 کاربران 3 سطح کاربریs: administraتاr, operaتاr, و کاربر |
| Security | کلمه عبور مقاومت, complicated کلمه عبور, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP آدرس filter, basic و digest authentication for HTTP/HTTPS, WSSE و digest authentication for Open شبکه تصویر Interface, RTP/RTSP OVER HTTPS, کنترل Timeout Settings, Security Audit Log, TLS 1.2 |
| ذخیره سازی شبکه | NAS (NFS, SMB/CIFS), اتوماتیک شبکه replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption و health detection are supported. |
| Client | iVMS-4200, Hik-Connect |
| مرورگر Web | Plug-in required live view: IE9+, کروم 41.0 تا 44, فایرفاکس 30.0 تا 51, سافاری 8.0 تا 11 Plug-in free live view: کروم 45.0+, فایرفاکس 52.0+ Not recommended: سافاری 11+, Edge |
| تصویر | |
| تصویر Parameters Switch | دارد |
| Settings تصویر | Saturation, brightness, contrast, sharpness, بالانس نور سفید, و AGC adjustable by client software یا web مرورگر |
| Switch روز و شب | روز, Night, اتوماتیک, Schedule, Alarm Trigger |
| Wide Dynamic Range (ضد نور WDR) | دسی بل 140 |
| Enhancement تصویر | BLC, HLC, ضد مه, 3D DNR |
| SNR | ≥ 52 دسی بل |
| Privacy Mask | 8 programmable polygon privacy masks, mask رنگ یا mosaic configurable |
| Stabilization تصویر | EIS |
| Overlay تصویر | LOGO تصویر can be overlaid on تصویر with 128 × 128 24bit bmp format |
| Interface | |
| خروجی تصویر | 1 Vp-p Composite خروجی (75 Ω/CVBS) (Only for debugging) |
| Ethernet Interface | 1 RJ45 10 متر/100 متر/1000 متر self-adaptive Ethernet پورت |
| ذخیره سازی On-board | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up تا 1 TB |
| Alarm | |
| RS-485 | With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset Key | دارد |
| خروجی تغذیه | 12 ولت DC, حداکثر. 100 mA |
| Event | |
| Basic Event | تشخیص حرکت, اختلال ویدیویی alarm, exception (شبکه disconnected, IP آدرس conflict, illegal ورود, abnormal reboot, HDD full, HDD error), تصویر quality diagnosis, vibration detection |
| Event هوشمند | |
| ارتباط | Upload تا FTP/NAS/memory card, notify surveillance center, send آدرس ایمیل, trigger خروجی آلارم, trigger recording, trigger capture, audible هشدار |
| Deep Learning Function | |
| حفاظت پیرامونی | Line crossing, ورود به محدوده, region entrance, region exiting Support alarm triggering by specified target types (انسان و vehicle) |
| شمارش افراد | Supports crossline شمارش افراد., Supports counting, displaying و exporting the people flow data of وارد کردن و exiting. (The data is sتاred in the flash.), The real-time people flow data is displayed on the screen. , Supports swing left و right از -60° تا 60°, tilt up و down از -30° تا 30°., Uploads face with background و closed-up face تصویر., Supports real-time uploading و uploading by statistic cycle |
| مدیریت Queue | Supports up تا 8 detection regions, و independent arming schedule و ارتباط method Supports 2 detection modes: regional people queuing-up, waiting time detection Generates reports تا compare the efficiency of different queuing-ups و display the changing وضعیت of یک queue Supports raw data export for further analysis. Supports real-time data uploading و scheduled data uploading Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal تا threshold, not equal تا threshold Waiting time detection: supports 1 alarm trigger condition, including greater than threshold |
| Heat Map | A graphic توضیحات of visits (by calculating مبلغ of people یا مبلغ of dwell time) in a configured area., Two repیاt types are available, space heat map و time heat map line chart. |
| Hard Hat Detection | Detects up تا 30 انسان targets simultaneously Supports up تا 4 shield regions |
| Metadata | ورود به محدوده detection,line crossing detection,region entrance detection,region exiting detection |
| Regional شمارش افراد | Suppیاts up تا 8 detection regions, و independent arming schedule و ارتباط method Suppیاts 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Suppیاts parameter settings: alarm times per exception, alarm interval, first alarm delay Suppیاts searching real-time number of people People density detection: suppیاts scheduled uploading, number of people change uploading, congestion level uploading Number of people exception detection: suppیاts 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal تا threshold A, not equal تا threshold A, greater than threshold A و less than threshold B, less than threshold A یا greater than threshold B (threshold A باید باشد less than threshold B) Waiting time exception detection: suppیاts 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A و less than threshold B (threshold A باید باشد less than threshold B) |
| On/Off Duty Detection | Supports up تا 8 detection regions, و independent arming schedule و ارتباط method Supports 2 detection modes: absence detection, on/off duty detection Supports parameter settings: person on duty, absence duration |
| General | |
| تغذیه | |
| Weight | Without -Y: approx. 1490 g (3.28 lb.) With -Y: approx. 1565 g (3.45 lb.) |
| With Package Weight | Without -Y: approx. 2435 g (5.37 lb.) With -Y: approx. 2295 g (5.06 lb.) |
| Material | Aluminum alloy body |
| Dimension | Ø162 × 141.8 میلی متر (Ø6.4" × 5.6") |
| Package Dimension | 251 × 215 × 189 میلی متر (9.9" × 8.5" × 7.4") |
| Conditions ذخیره سازی | -30 درجه سانتی گراد تا 60 درجه سانتی گراد (-22 درجه فارنهایت تا 140 درجه فارنهایت). Humidity 95% یا less (non-condensing) |
| Startup و Operating Conditions | -40 درجه سانتی گراد تا 60 درجه سانتی گراد (-40 درجه فارنهایت تا 140 درجه فارنهایت). Humidity 95% یا less (non-condensing) |
| Language | 33 languages: انگلیسی, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, ترکی, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Heartbeat, mirror, کلمه عبور مقاومت, watermark, privacy mask, IP آدرس filter, یک-key reset, five streams |
| Heater | دارد |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005); LOA (IEC/EN 60950-1) |
| محیط | |
| مقاومت | IK10 (IEC 62262:2002), ضد آب IP67 (IEC 60529-2013) |
| Automotive و Railway | EN50121-4 |
| مقاومت Anti-Corrosion | With -Y: NEMA 4X (NEMA 250-2018) |
| Other | PVC FREE |
