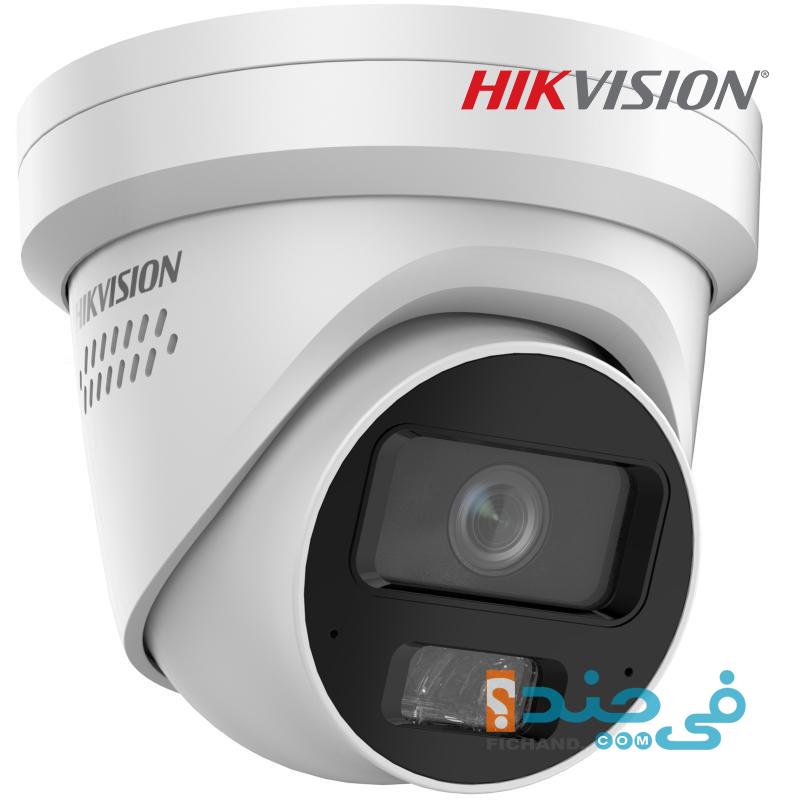

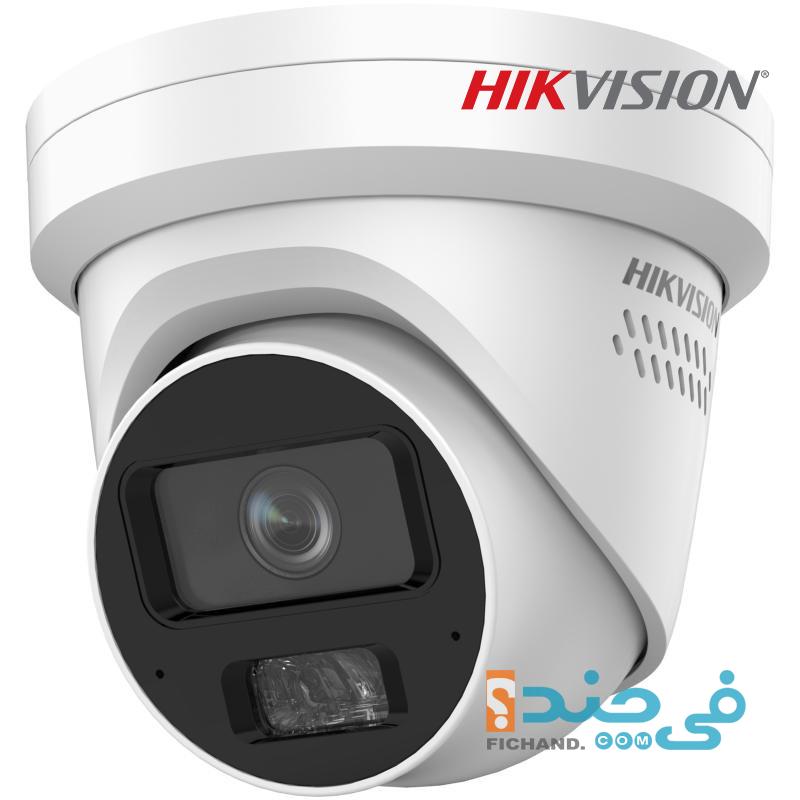

4 MP DarkfighterS DeepinView Fixed Turret Network Camera
| دوربین | |
| حسگر تصویر | 1/1.8" Progressive Scan CMOS |
| رزولیشن حداکثر | 2688 × 1520 |
| روشنایی دید در شب حداقل | Color: 0.0003 لوکس نوری @ (F1.0, AGC ON),B/W: 0.0001 لوکس نوری @ (F1.0, AGC ON),B/W: 0 لوکس نوری with مادون قرمز |
| Shutter Time | 1 s تا 1/100,000 s |
| روز & Night | مادون قرمز cut filter, Blue glass module (less ghost phenomenon) |
| Angle Adjustment | چرخش چپ و راست (Pan): 0° تا 355°,چرخش بالا و پایین (Tilt): 0° تا 65°,rotate: 0° تا 360° |
| لنز | |
| فاصله کانونی & FOV | 2.8 mm: horizontal FOV 111.0°, vertical FOV 57.6°, diagonal FOV 138.4° 4 mm: horizontal FOV 94.7°, vertical FOV 49.4°, diagonal FOV 112.6° |
| نوع Iris | ثابت |
| دیافراگم | F1.0 |
| DORI | 2.8 مترمتر: D: 61.5 متر, O: 24.4 متر, R: 12.73 متر, I: 6.2 متر 4 مترمتر: D: 72.1 متر, O: 28.6 متر, R: 14.4 متر, I: 7.2 متر |
| روشنایی | |
| Supplement Light نوع | Hybrid (مادون قرمز و White Light) |
| Supplement Light Range | Up تا 40 متر |
| هوشمند Supplement Light | دارد |
| Wavelength مادون قرمز | 850 nm |
| HEOP | |
| Open Resources | Memory: 40 MB, هوشمند RAM: 350 MB, eMMC: 1 GB |
| تغذیه Computing | 1.5 TOPS |
| Open Capability | HEOP 2.0 OpendevSDK |
| Deep Learning ساختار | Caffe,TensorFlow,PaddlePaddle,ONNX |
| Programming Language | C++ |
| تصویر | |
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fourth Stream | 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Fifth Stream | 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| فشرده سازی تصویر | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG |
| تصویر Bit Rate | 32 Kbps تا 8 Mbps |
| نوع H.264 | Baseline Profile,Main Profile,High Profile |
| نوع H.265 | Main Profile |
| Bit Rate کنترل | CBR,VBR |
| Scalable تصویر Coding (SVC) | H.264 و H.265 encoding |
| Target Cropping | دارد |
| Region of Interest (RoI) | 4 ثابت regions for each stream |
| صدا | |
| نوع صدا | Mono sound |
| Compression صدا | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| صدا Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 تا 192 Kbps (MP2L2)/8 تا 320 Kbps (MP3)/16 تا 64 Kbps (AAC-LC) |
| صدا Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| محیط Noise Filtering | دارد |
| شبکه | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets |
| Simultaneous Live نمایش | Up تا 20 کانال |
| API | Open شبکه تصویر Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
| کاربر/Host | Up تا 32 کاربران 3 سطح کاربریs: administraتاr, operaتاr, و کاربر |
| Security | کلمه عبور مقاومت, complicated کلمه عبور, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP آدرس filter, basic و digest authentication for HTTP/HTTPS, WSSE و digest authentication for Open شبکه تصویر Interface, RTP/RTSP OVER HTTPS, کنترل Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3 |
| ذخیره سازی شبکه | NAS (NFS, SMB/CIFS),اتوماتیک شبکه Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption و health detection are supported. |
| Client | iVMS-4200,Hik-Connect |
| مرورگر Web | Plug-in required live view: IE 10, IE 11, Plug-in free live view: کروم 57.0+, فایرفاکس 52.0+ |
| تصویر | |
| تصویر Parameters Switch | دارد |
| Settings تصویر | Saturation,brightness,contrast,sharpness,AGC,بالانس نور سفید,adjustable by client software یا web مرورگر |
| Switch روز و شب | روز,Night,اتوماتیک,Schedule,Alarm Trigger,تصویر Trigger |
| Wide Dynamic Range (ضد نور WDR) | دسی بل 140 |
| Enhancement تصویر | BLC,HLC,3D DNR,Defog |
| Privacy Mask | 8 programmable polygon privacy masks |
| Overlay تصویر | LOGO تصویر can be overlaid on تصویر with 128 × 128 24 bit bmp format. |
| Stabilization تصویر | EIS |
| Interface | |
| Ethernet Interface | 1 RJ45 10 متر/100 متر self-adaptive Ethernet پورت |
| ذخیره سازی On-board | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up تا 1 TB |
| Alarm | |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset Key | دارد |
| خروجی تغذیه | 12 ولت DC, حداکثر. 100 mA |
| Event | |
| Basic Event | تشخیص حرکت,اختلال ویدیویی alarm,تصویر quality diagnosis,exception (شبکه disconnected, IP آدرس conflict, illegal ورود, abnormal restart, HDD full, HDD error),vibration detection |
| Event هوشمند | |
| ارتباط | Upload تا FTP/NAS/memory card,notify surveillance center,send آدرس ایمیل,trigger خروجی آلارم,trigger recording,trigger capture,audible هشدار |
| Deep Learning Function | |
| Face Capture | Detects up تا 60 faces simultaneously, Supports swing left و right از -60° تا 60°, tilt up و down از -30° تا 30°, Uploads face with background و closed-up face تصاویر |
| شمارش افراد | Supports crossline شمارش افراد, Supports counting, displaying و exporting the people flow data of وارد کردن و exiting. (The data is sتاred in the flash.), The real-time people flow data is displayed on the screen. , Supports swing left و right از -60° تا 60°, tilt up و down از -30° تا 30°., Uploads face with background و closed-up face تصویر., Supports real-time uploading و uploading by statistic cycle |
| مدیریت Queue | Supports up تا 8 detection regions, و independent arming schedule و ارتباط method, Supports 2 detection modes: regional people queuing-up, waiting time detection, Generates reports تا compare the efficiency of different queuing-ups و display the changing وضعیت of یک queue, Supports raw data export for further analysis, Supports real-time data uploading و scheduled data uploading, Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal تا threshold, not equal تا threshold, Waiting time detection: supports 1 alarm trigger condition, including greater than threshold |
| Heat Map | A graphic توضیحات of visits (by calculating مبلغ of people یا مبلغ of dwell time) in a configured area., Two repیاt types are available, space heat map و time heat map line chart. |
| حفاظت پیرامونی | Line crossing, ورود به محدوده, region entrance, region exiting, Support alarm triggering by specified target types (انسان و vehicle) |
| Metadata | ورود به محدوده detection,line crossing detection,region entrance detection,region exiting detection |
| On/Off Duty Detection | Supports up تا 8 detection regions, و independent arming schedule و ارتباط method, Supports 2 detection modes: absence detection, on/off duty detection, Supports parameter settings: person on duty, absence duration |
| General | |
| تغذیه | |
| Material | Aluminum alloy body |
| Dimension | Ø138.6 میلی متر × 124.4 میلی متر (Ø5.46" × 4.86") |
| Package Dimension | 170 میلی متر × 170 میلی متر × 150 میلی متر (6.7" × 6.7" × 6.0") |
| Weight | Approx. 820 g (1.81 lb.) |
| With Package Weight | Approx. 1095 g (2.42 lb.) |
| Conditions ذخیره سازی | -30 درجه سانتی گراد تا 60 درجه سانتی گراد (-22 درجه فارنهایت تا 140 درجه فارنهایت). Humidity 95% یا less (non-condensing) |
| Startup و Operating Conditions | -30 درجه سانتی گراد تا 60 درجه سانتی گراد (-22 درجه فارنهایت تا 140 درجه فارنهایت). Humidity 95% یا less (non-condensing) |
| Language | 33 languages: انگلیسی, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, ترکی, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Heartbeat,anti-banding,یک-key reset,mirror,کلمه عبور مقاومت,flash log |
| Demist | دارد |
| Approval | |
| EMC | CE-EMC: EN 55032: 2015+A1:2020, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 |
| محیط | |
| مقاومت | IP67: IEC 60529-2013 |
