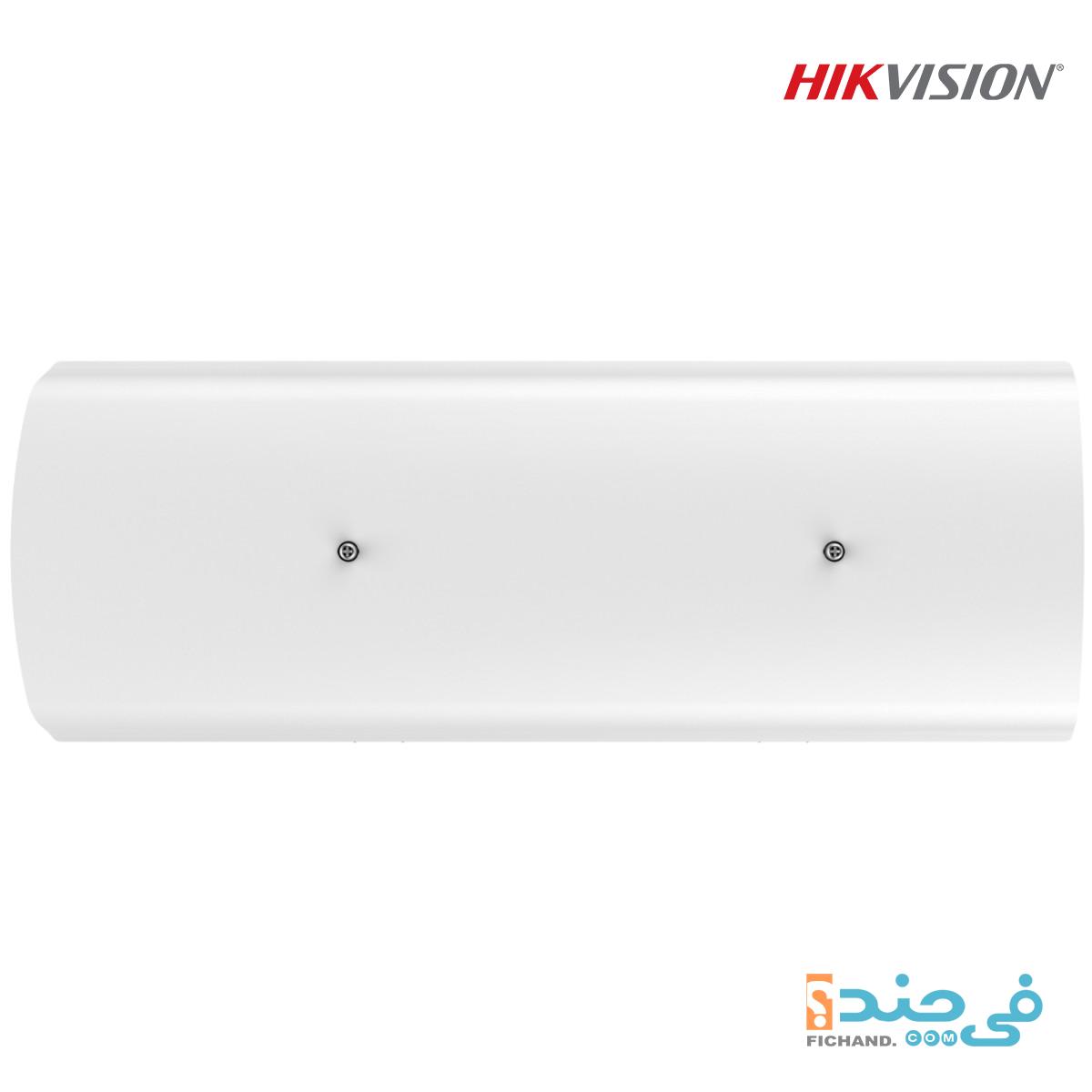

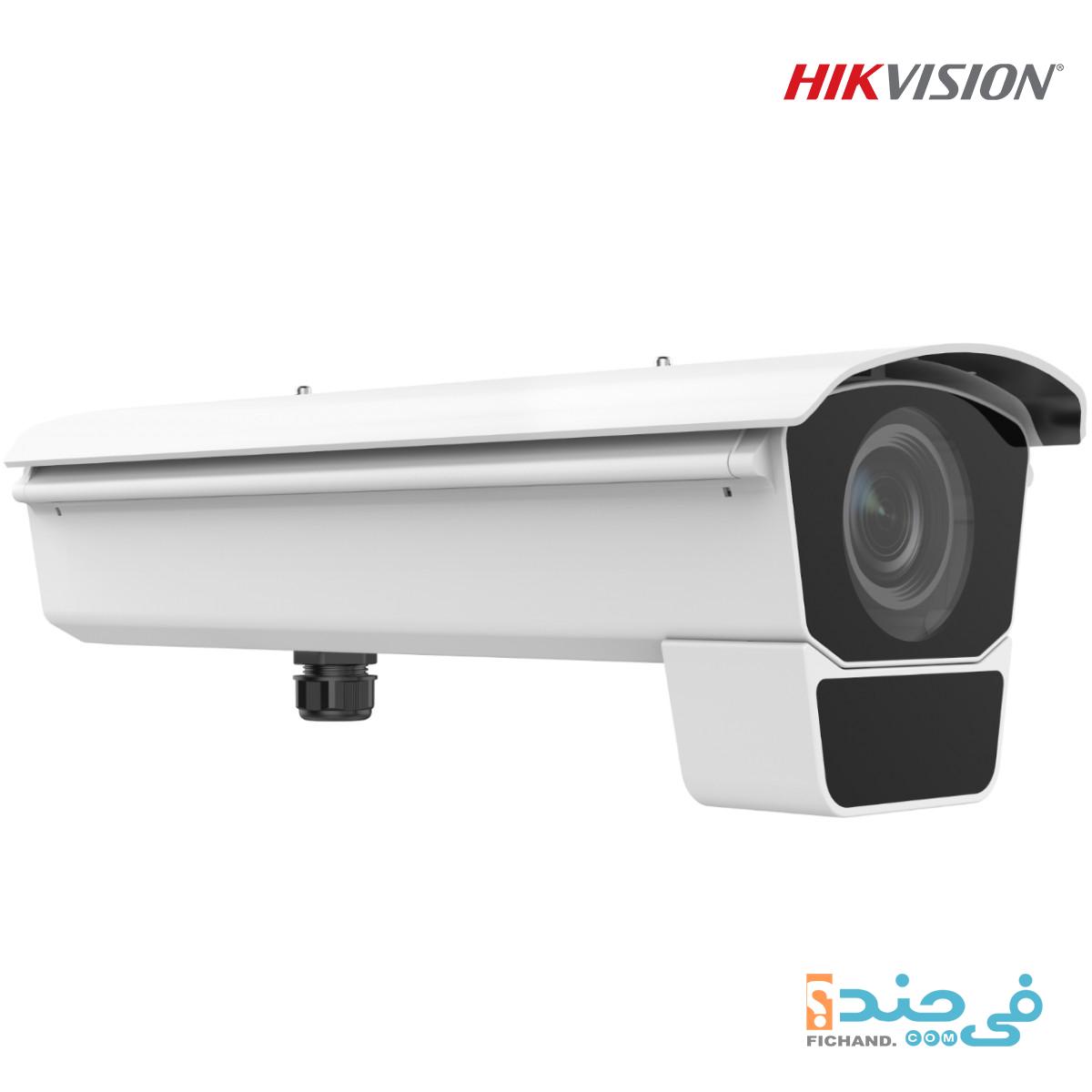

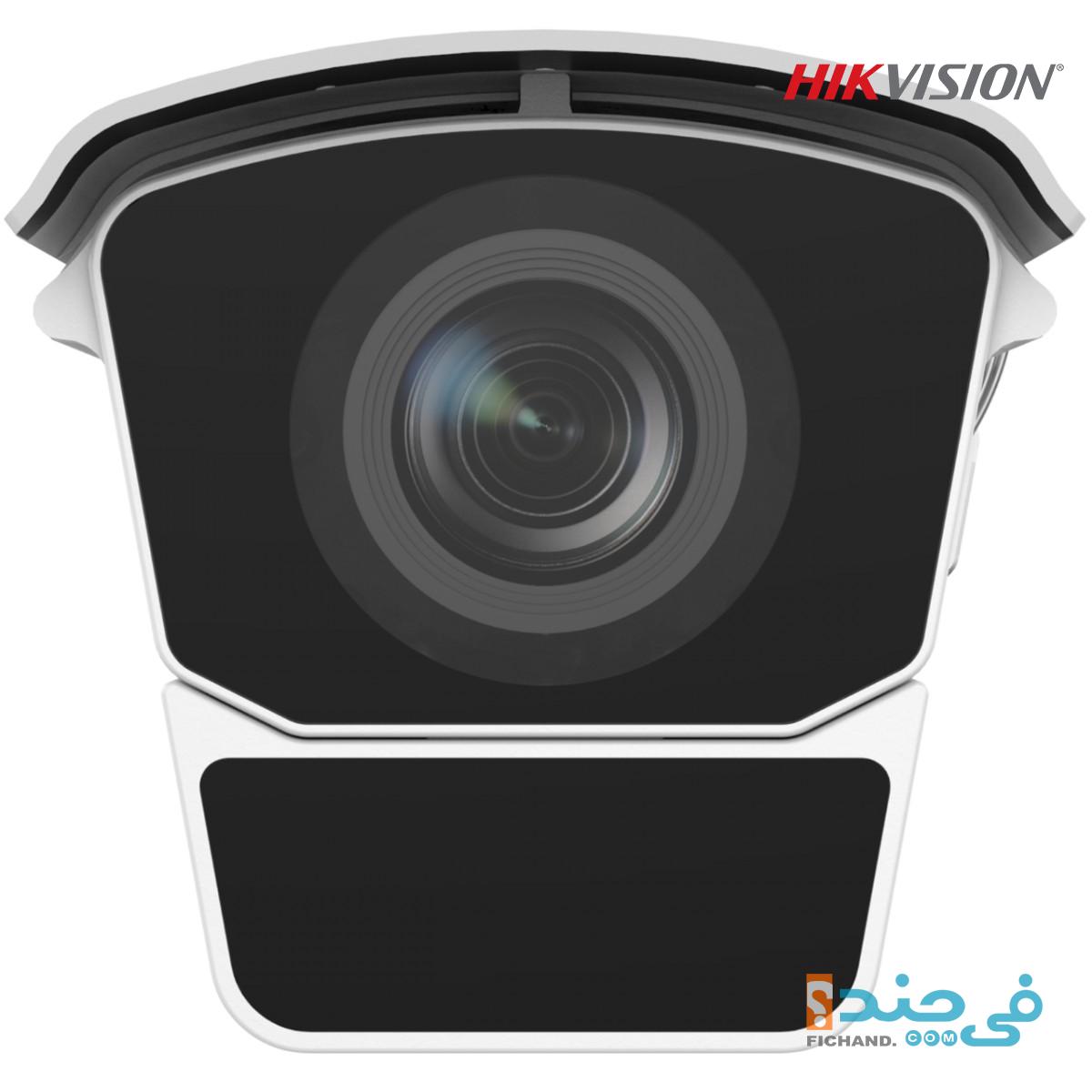

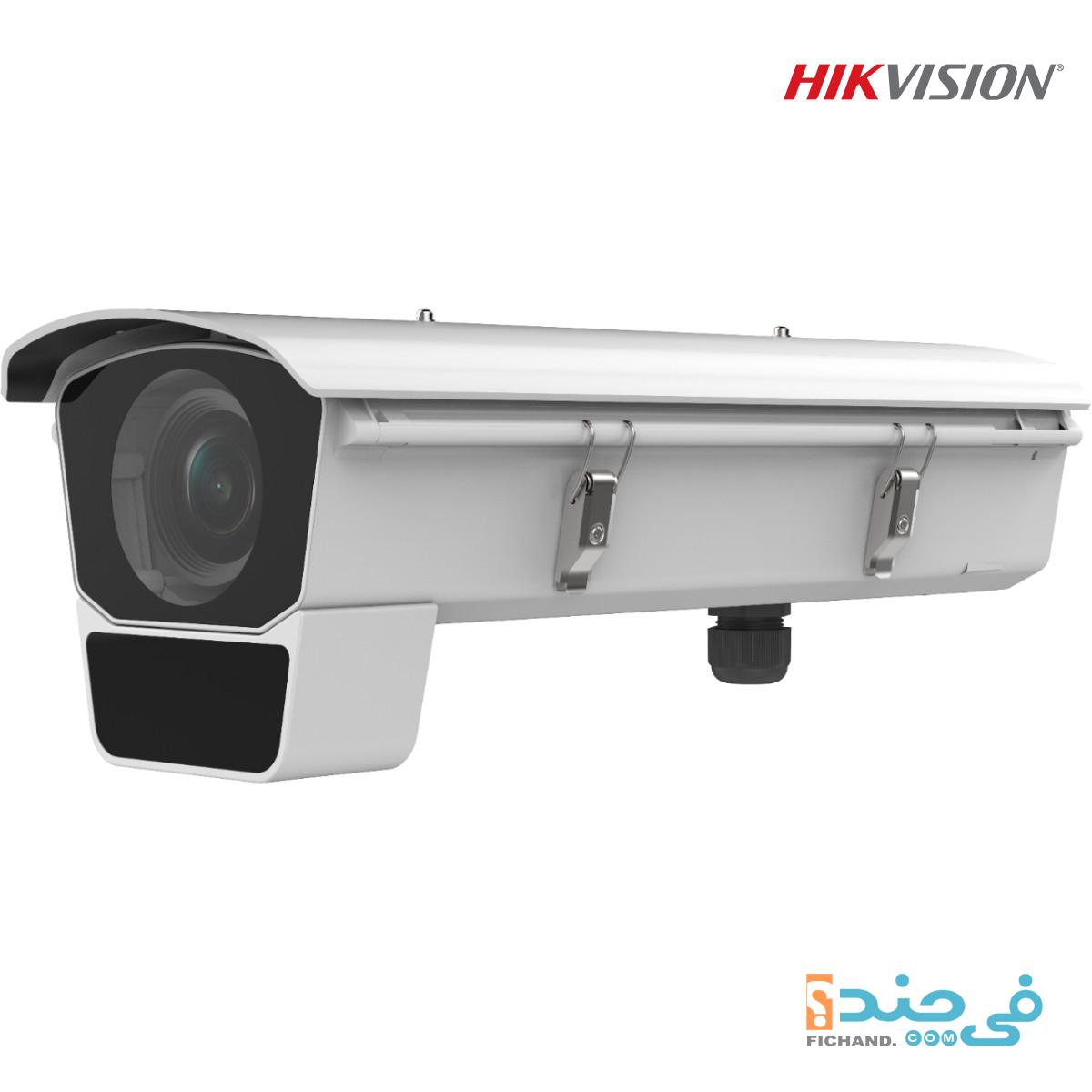

12MP DeepinView Varifocal Box With Housing Camera
| دوربین | |
| حسگر تصویر | 1/1.7″ Progressive Scan CMOS |
| رزولیشن حداکثر | 4000 × 3000 |
| روشنایی دید در شب حداقل | Color: 0.002 لوکس نوری @ (F1.4, AGC ON); B/W: 0.002 لوکس نوری @ (F1.4, AGC ON) |
| Shutter Time | 1 s تا 1/100,000 s |
| روز & Night | مادون قرمز cut filter Blue glass module تا reduce ghost phenomenon |
| لنز | |
| فاصله کانونی & FOV | 3.8 تا 16 میلی متر, horizontal FOV: 103.5° تا 28.1°, vertical FOV: 77.3° تا 21.1°, diagonal FOV: 129.3° تا 35.0° 11 تا 40 میلی متر, horizontal FOV: 36.9° تا 11.5°, vertical FOV: 27.1° تا 8.6°, diagonal FOV: 47.5° تا 14.4° |
| Mount لنز | CS mount |
| نوع Iris | P-iris |
| دیافراگم | 3.8 تا 16 mm: F1.4 11 تا 40 mm: constant F1.4 throughout the zoom range |
| روشنایی | |
| Supplement Light نوع | مادون قرمز |
| Supplement Light Range | 3.8 تا 16 مترمتر: 80 متر 11 تا 40 مترمتر: 120 متر |
| هوشمند Supplement Light | دارد |
| Wavelength مادون قرمز | 850 nm |
| تصویر | |
| Main Stream | 50 Hz: 25 fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 50 Hz: 20 fps (4000 × 3000) 60 Hz: 20 fps (4000 × 3000) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fourth Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fifth Stream | 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Custom Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| فشرده سازی تصویر | Main stream: H.265+/H.265/H.264+/ H.264 Sub-stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG |
| تصویر Bit Rate | 32 Kbps تا 16 Mbps |
| نوع H.264 | Baseline Profile/Main Profile/High Profile |
| نوع H.265 | Main Profile |
| Bit Rate کنترل | CBR/VBR |
| Scalable تصویر Coding (SVC) | H.265 و H.264 support |
| Region of Interest (RoI) | 4 ثابت regions for each stream |
| Target Cropping | دارد |
| صدا | |
| نوع صدا | Mono sound |
| Compression صدا | G.711/G.722.1/G.726/MP2L2/PCM/MP3 |
| صدا Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/8-320Kbps(MP3) |
| صدا Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| محیط Noise Filtering | دارد |
| شبکه | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| Simultaneous Live نمایش | Up تا 20 کانال |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP |
| Smooth Streaming | دارد |
| کاربر/Host | Up تا 32 کاربران. 3 سطح کاربریs: administraتاr, operaتاr و کاربر |
| Security | کلمه عبور مقاومت, complicated کلمه عبور, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP آدرس filter, basic و digest authentication for HTTP/HTTPS, WSSE و digest authentication for ONVIF, RTP/RTSP OVER HTTPS, کنترل Timeout Settings, Security Audit Log, TLS 1.2 |
| ذخیره سازی شبکه | microSD/SDHC/SDXC card (256 GB) local ذخیره سازی, و NAS (NFS, SMB/CIFS), اتوماتیک شبکه replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption و health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| مرورگر Web | Plug-in required live view: IE8+ Plug-in free live view: کروم 57.0+, فایرفاکس 52.0+, سافاری 11+ Local service: کروم 41.0+, فایرفاکس 30.0+ |
| تصویر | |
| تصویر Parameters Switch | دارد |
| Settings تصویر | Saturation, brightness, contrast, sharpness, gain, بالانس نور سفید adjustable by client software یا web مرورگر |
| Switch روز و شب | روز, Night, اتوماتیک, Schedule, Triggered by Alarm In |
| Wide Dynamic Range (ضد نور WDR) | ضد نور WDR Digital |
| SNR | دسی بل ≥52 |
| Enhancement تصویر | BLC, HLC, 3D DNR, ضد مه, EIS, Distortion Correction |
| Overlay تصویر | LOGO تصویر can be overlaid on تصویر with 128 × 128 24 bit bmp format |
| Interface | |
| خروجی تصویر | 1 Vp-p Composite خروجی(75 Ω/CVBS) (For debugging only) |
| Ethernet Interface | 1 RJ45 100 متر/1000 متر self-adaptive Ethernet پورت |
| ذخیره سازی On-board | میکروفون داخلیro SD/SDHC/SDXC slot, up تا 256 GB |
| Alarm | |
| RS-485 | 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset Key | دارد |
| خروجی تغذیه | 12 ولت DC, حداکثر. 100 mA (supported by all منبع تغذیه types) |
| Fiber Optical | خیر |
| Event | |
| Basic Event | تشخیص حرکت, اختلال ویدیویی alarm, vibration detection, exception (شبکه disconnected, IP آدرس conflict, illegal ورود, HDD full, HDD error) |
| Event هوشمند | |
| ارتباط | Upload تا FTP/NAS/memory card, notify surveillance center, send آدرس ایمیل, trigger خروجی آلارم, trigger recording, trigger capture Trigger recording: memory card, شبکه sتاrage, pre-record و post-record Trigger captured تصاویر uploading: FTP, SFTP, HTTP, NAS, آدرس ایمیل Trigger notification: HTTP, ISAPI, خروجی آلارم, آدرس ایمیل |
| Deep Learning Function | |
| Multi-target-type Detection | Supports simultaneous detection of تشخیص بدن انسان و face Gets 8 face features و 13 تشخیص بدن انسان features |
| Face Capture | Detects up تا 30 faces simultaneously; Supports swing left و right از -60° تا 60°, tilt up و down از -30° تا 30°; |
| Face Comparison | Up تا 3 face libraries with up تا 30000 faces each are configurable; Recognizes face identity via face modeling, grading و comparing تا those in face library; Supports face library encryption. |
| شمارش افراد | Supports counting, وارد کردن/exiting counting (track 30 targets simultaneously); Supports facial recognition; Supports 24-hour dynamic deduplication و face library deduplication (up تا 3 face libraries with up تا 30000 faces); Supports reporting alarms when detecting the face is the same as that in the face library. |
| مدیریت Queue | Detects queuing-up people number, و waiting time of each person Generates reports تا compare the efficiency of different queuing-ups و display the changing وضعیت of یک queue Supports raw data export for further analysis |
| Hard Hat Detection | Detects up تا 30 انسان targets simultaneously Supports up تا 4 shield regions |
| حفاظت پیرامونی | Line crossing, ورود به محدوده, region entrance, region exiting Support alarm triggering by specified target types (انسان و vehicle) Filtering out mistaken alarm caused by target types such as leaf, light, animal, و flag, etc. |
| Metadata | Metadata of ورود به محدوده detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal, face capture و queue مدیریت are supported. |
| General | |
| تغذیه | |
| Dimension | 465.3 × 169.2 ×164.7 میلی متر (18.3″ × 6.7 × 6.5″) |
| Package Dimension | 615 × 360 × 225 میلی متر (24.2″ × 14.2" × 8.9″) |
| Weight | 3800 g (8.4 lb.) |
| With Package Weight | 6000 g (13.2 lb.) |
| Conditions ذخیره سازی | -30 درجه سانتی گراد تا 60 درجه سانتی گراد (-22 درجه فارنهایت تا 140 درجه فارنهایت). Humidity 95% یا less (non-condensing) |
| Startup و Operating Conditions | -40 درجه سانتی گراد تا 65 درجه سانتی گراد (-40 درجه فارنهایت تا 149 درجه فارنهایت). Humidity 95% یا less (non-condensing) |
| Language | 33 languages انگلیسی, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, ترکی, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil),Ukrainian |
| General Function | Anti- flicker, 5 streams و up تا 5 cusتاm streams, EPTZ, heartbeat, mirror, privacy masks,flash log, کلمه عبور reset via e-mail, پیکسل counter |
| Heater | دارد |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) |
| محیط | |
| مقاومت | IP66 (IEC 60529-2013), IK10 (IEC 62262:2002) |
| مقاومت Anti-Corrosion | With -Y: NEMA 4X(NEMA 250-2018) |
| Automotive و Railway | With -R: EN50121-4 |
